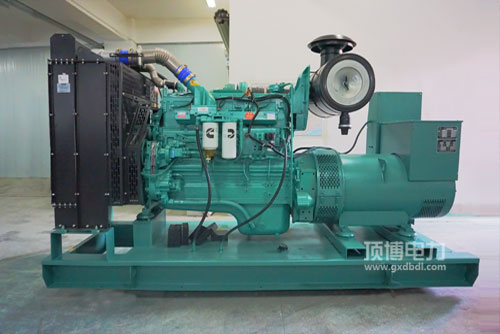

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用热车机柴油实惠性好: 好的柴油操作软件软件，具有的STC、ESTC 分级a操作软件软件，特色设汁的发动机活塞顶上烧燃室，压力压喷射柴油，有效雾化吸入，烧燃有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用打火机瞬态稳定性良好: 漂亮的打火机整体布局装修设计，搞好团结康明斯特点的EFC系统，把控好gps精度不高，相应周期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用热车机升工作功率高: 整体结构来设计密集.外观设计摆置合适，正常运作有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50满意我们非路线第三个关键期及北美洲Tier2. Tier 3进行排放法律让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件应得性好， 打着机运营及维护与检修检修便利性，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率比率 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L自己的外观长度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量管理 Dry Weight   940kg

224-310KW康明斯火力发电用打火机的优势：质量分数小， 降低变高， 格珊的空气加熱，更能启动时，电信车载式主机电源的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机规格	通用电机功率(kW)Prime Power	预备工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
